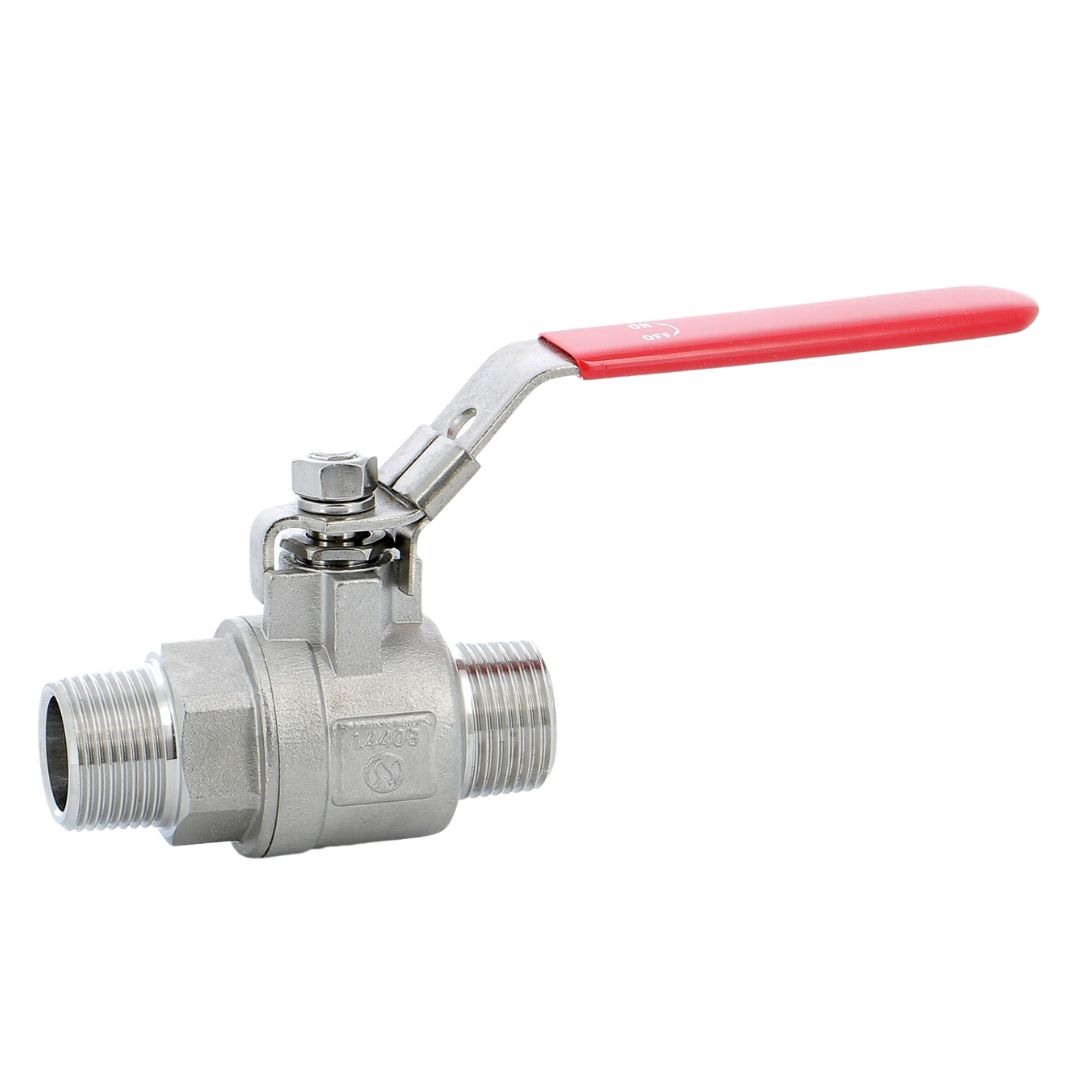

The Sferaco 709 series ball valve, 2-piece body, male-male connection, reduced bore, with padlockable handle for chemical industries, compressed air, hydraulic installations.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 7-1 R |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 895.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Reduced |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP MM |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MM Stainless steel CF8M (1.4408) Reduced 2-piece body 3/8'' | 709003 | S1006408 |
€9.79
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 2-piece body 1/2'' | 709004 | S1006409 |
€13.14
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 2-piece body 3/4'' | 709005 | S1006410 |
€18.60
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 2-piece body 1'' | 709006 | S1006411 |
€21.90
(excl. btw)
|
add to cart |
